| ชื่อแบรนด์: | GUKE |
| หมายเลขรุ่น: | 231-8982 2318982 |
| ขั้นต่ำ: | 1 ชิ้น |
| ราคา: | สามารถต่อรองได้ |
| รายละเอียดบรรจุภัณฑ์: | กล่องกระดาษ |
| เงื่อนไขการชำระเงิน: | T/T, เวสเทิร์นยูเนี่ยน, เพย์พาล |
Guangzhou GUKE Construction Machinery Co., Ltd. brings a decade of industry expertise as a specialized supplier focused on sealing components and comprehensive construction machinery parts.
We leverage robust supply channels to provide a wide range of sealing products from leading brands such as N-0-K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components.
By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.

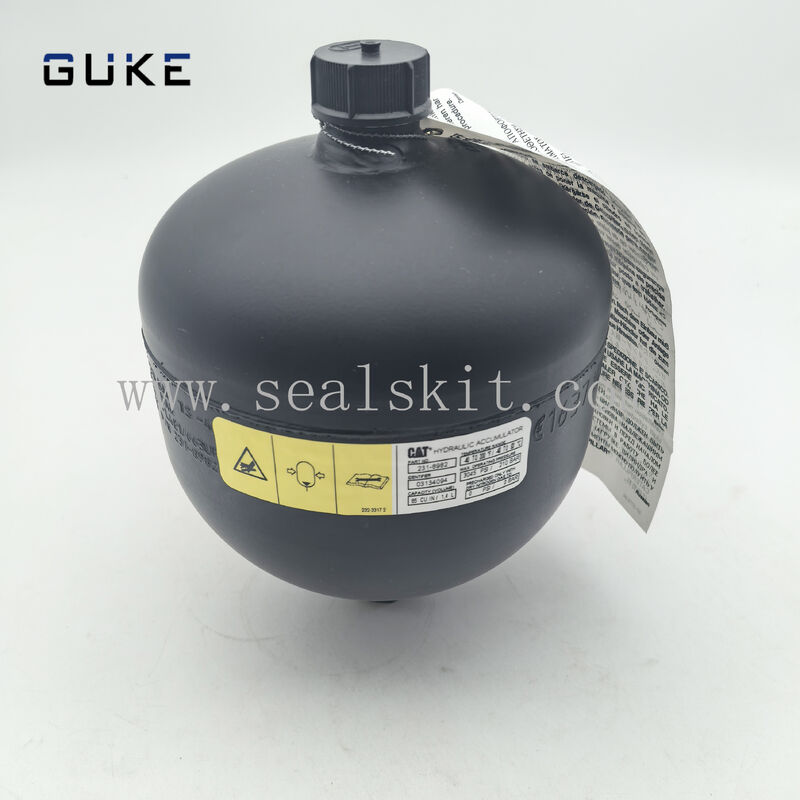

| Name: | Accumulator GP-Hydraulic |
| Condition: | 100% New |
| Material: | STEEL |
| Part Number: | 231-8982 2318982 |
| Size: | Standard Size |
| Application: | CAT Truck 735 735B 740 740B 953C CONTROL GP-SERVICE BRAKE |
| Feature: | Wear Resistance, Cost-effective |
| Certification: | ISO 9001 |
| OEM: | Acceptable |
| Availability: | In Stock |
| Shipping: | Express, By Air, By Sea |
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| 1 | 148-8427 | 1 | TEE AS |
| 6V-8398 | 3 | SEAL-O-RING | |
| 8T-6895 | 1 | TEE-UNION | |
| 2 | 148-8436 | 1 | TEE AS |
| 3K-0360 | 1 | SEAL-O-RING | |
| 6V-8398 | 2 | SEAL-O-RING | |
| 6V-8775 | 1 | TEE-FACE SEAL | |
| 3 | 6U-0455 | 3 | STRAP |
| 4 | 189-5719 | 5 | ADAPTER AS |
| 3K-0360 | 2 | SEAL-O-RING | |
| 6V-0467 | 1 | CONNECTOR | |
| 5 | 218-6543 I | 1 | HOSE AS |
| 6 | 374-5789 Y | 1 | VALVE GP-SOLENOID (SERVICE BRAKE) |
| 7 | 396-0399 | 1 | CONNECTOR AS |
| 6V-9746 | 1 | SEAL-O-RING | |
| 396-0398 | 1 | CONNECTOR | |
| 8 | 397-4784 | 1 | MANIFOLD AS |
| 9 | 397-4785 | 1 | MANIFOLD AS |
| 10 | 421-7694 | 1 | TEE AS |
| 3K-0360 | 1 | SEAL-O-RING | |
| 6V-8398 | 1 | SEAL-O-RING | |
| 421-7685 | 1 | ADAPTER-TEE | |
| 11 | 231-8982 Y | 5 | ACCUMULATOR GP-HYDRAULIC (UNCHARGED)(CHARGED) |
| 12 | 438-5876 I | 1 | HOSE AS |
| 13 | 445-0112 I | 1 | HOSE AS |
| 14 | 450-9712 | 2 | CLAMP |
| 15 | 451-8946 I | 1 | HOSE AS |
| 16 | 453-0752 | 1 | TUBE AS |
| 17 | 453-0757 | 1 | TUBE AS |
| 18 | 453-0759 I | 1 | HOSE AS |
| 19 | 453-0804 | 1 | TUBE AS |
| 20 | 453-1339 | 1 | TUBE AS |
| 21 | 453-3396 | 1 | BRACKET AS |
| 22 | 453-5040 | 1 | BRACKET AS |
| (EACH BRACKET AS INCLUDES) | |||
| 8T-3490 M | 3 | NUT-WELD (M10X1.5-THD) | |
| 8T-3597 M | 1 | NUT-WELD (M12X1.75-THD) | |
| 23 | 453-5306 I | 1 | HOSE AS |
| 24 | 453-7101 | 2 | BRACKET AS |
| (EACH INCLUDES) | |||
| 8T-3490 M | 2 | NUT-WELD (M10X1.5-THD) | |
| 25 | 456-3868 | 1 | PLATE AS |
| 8T-3490 M | 1 | NUT-WELD (M10X1.5-THD) | |
| 8T-3597 M | 1 | NUT-WELD (M12X1.75-THD) | |
| 26 | 464-8122 I | 1 | HOSE AS |
| 27 | 466-9023 | 1 | TUBE AS |
| 28 | 467-8371 | 1 | BRACKET AS |
| 29 | 467-8374 | 1 | BRACKET AS |
| 30 | 467-8389 | 1 | BRACKET AS |
| 8T-3490 M | 6 | NUT-WELD (M10X1.5-THD) | |
| 8Y-3795 M | 1 | BOSS (M10X1.5X39-MM) | |
| 31 | 467-8391 | 1 | BRACKET AS |
| 34 | 467-8415 | 1 | BRACKET AS |
| 35 | 467-8417 | 1 | BRACKET AS |
| 36 | 148-8328 | 1 | CONNECTOR AS |
| 3D-2824 | 1 | SEAL-O-RING | |
| 6V-8398 | 1 | SEAL-O-RING | |
| 6V-8633 | 1 | CONNECTOR | |
| 37 | 148-8340 | 2 | CONNECTOR AS |
| (EACH INCLUDES) | |||
| 3K-0360 | 1 | SEAL-O-RING | |
| 6V-8398 | 1 | SEAL-O-RING | |
| 6V-8639 | 1 | CONNECTOR | |
| 38 | 148-8359 | 1 | ELBOW AS |
| 3K-0360 | 1 | SEAL-O-RING | |
| 6V-9746 | 1 | SEAL-O-RING | |
| 6V-9877 | 1 | ELBOW | |
| 39 | 148-8364 | 1 | ELBOW AS |
| 3K-0360 | 1 | SEAL-O-RING | |
| 6V-8398 | 1 | SEAL-O-RING | |
| 6V-8625 | 1 | ELBOW | |
| 40 | 148-8370 | 1 | ELBOW AS |
| 6V-8398 | 1 | SEAL-O-RING | |
| 6V-9851 | 1 | ELBOW | |
| 42 | 148-8378 | 1 | ELBOW AS |
| 3J-1907 | 1 | SEAL-O-RING | |
| 6V-8397 | 1 | SEAL-O-RING | |
| 6V-8724 | 1 | ELBOW | |
| 43 | 148-8381 | 1 | ELBOW AS |
| 3D-2824 | 1 | SEAL-O-RING | |
| 6V-8398 | 1 | SEAL-O-RING | |
| 8T-5429 | 1 | ELBOW | |
| 44 | 164-5567 | 1 | COUPLER AS-QUICK DISCONNECT (MALE) |
| 6V-3965 | 1 | FITTING (QUICK DISCONNECT) | |
| 214-7568 | 1 | SEAL-O-RING | |
| 45 | 2P-1293 | 1 | LOCKNUT (1-3/16-12-THD) |
| 46 | 3K-0360 | 2 | SEAL-O-RING |
| 47 | 5P-6863 | 3 | CLIP (TAB) |
| 48 | 5P-6864 | 3 | CLIP (SLOT) |
| 49 | 5P-7464 | 3 | CLIP (SLOT) |
| 50 | 5P-7465 | 3 | CLIP (TAB) |
| 51 | 6D-4636 | 2 | CLIP (LOOP) |
| 52 | 6V-0852 | 1 | CAP-DUST (SERVICE BRAKE) |
| 53 | 6V-1249 | 3 | GROMMET (22-MM ID) |
| 54 | 6V-8397 | 1 | SEAL-O-RING |
| 55 | 6V-8398 | 1 | SEAL-O-RING |
| 56 | 6V-9168 | 1 | NUT (11/16-16-THD) |
| 57 | 6V-9169 | 2 | NUT (13/16-16-THD) |
| 58 | 6V-9746 | 1 | SEAL-O-RING |
| 59 | 7X-7729 | 45 | WASHER (11X25X3-MM THK) |
| 60 | 8T-1887 | 4 | CLIP (SLOT) |
| 61 | 8T-1888 | 4 | CLIP (TAB) |
| 62 | 8T-4121 | 10 | WASHER-HARD (11X21X2.5-MM THK) |
| 63 | 8T-4123 | 2 | WASHER (22X35X3.5-MM THK) |
| 64 | 8T-4133 M | 1 | NUT (M10X1.5-THD) |
| 65 | 8T-4136 M | 4 | BOLT (M10X1.5X25-MM) |
| 66 | 8T-4137 M | 1 | BOLT (M10X1.5X20-MM) |
| 67 | 8T-4139 M | 3 | BOLT (M12X1.75X30-MM) |
| 68 | 8T-4182 M | 10 | BOLT (M10X1.5X45-MM) |
| 69 | 8T-4186 M | 6 | BOLT (M10X1.5X40-MM) |
| 70 | 8T-4192 M | 1 | BOLT (M12X1.75X25-MM) |
| 71 | 8T-4195 M | 3 | BOLT (M10X1.5X30-MM) |
| 72 | 8T-4196 M | 28 | BOLT (M10X1.5X35-MM) |
| 73 | 8T-4223 | 4 | WASHER-HARD (13.5X25.5X3-MM THK) |
| 74 | 5P-4116 | 4 | WASHER-HARD (8.8X20.5X2-MM THK) |
| 75 | 8T-4908 M | 4 | BOLT (M8X1.25X25-MM) |
| 76 | 8T-5005 M | 2 | BOLT (M10X1.5X70-MM) |
| 77 | 8W-8909 | 2 | SLEEVE |
| 78 | 9S-4185 | 2 | PLUG (3/4-16-THD) |
| 79 | 9X-8257 | 1 | WASHER (17.5X30X3.5-MM THK) |
| 80 | 9X-8258 | 1 | WASHER (33X56X6-MM THK) |
| 81 | 494-1933 Y | 1 | ADAPTER GP-MOUNTING |
| 82 | 494-9344 | 1 | ADAPTER GP-MOUNTING |
| 6V-9168 | 1 | NUT (11/16-16-THD) | |
| 9X-8257 | 1 | WASHER (17.5X30X3.5-MM THK) | |
| 148-8366 | 1 | ELBOW AS | |
| 6V-8397 | 2 | SEAL-O-RING | |
| 6V-8987 | 1 | ELBOW | |
| 467-8413 | 1 | BRACKET AS | |
